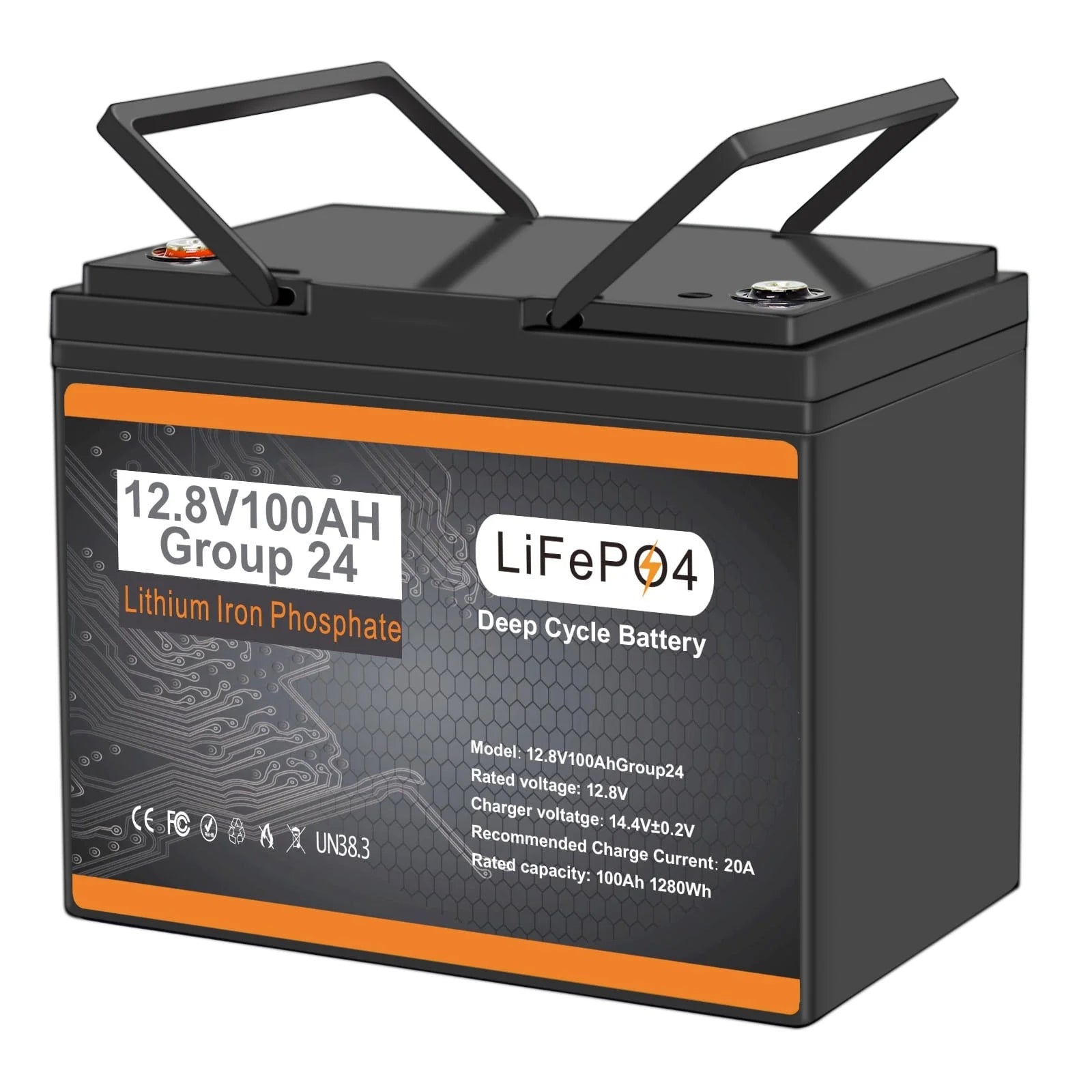

12V 100Ah LiFePO4 Battery BCI Group 24, Built-in100A BMS Lithium Battery Deep Cycle for Trolling Motor, Marine,RV, Solar System

【Group 24 Universal Size】The mini 12V 100Ah Group 24 lithium iron phosphate battery size 10.12 L * 6.42 W * 7.95 H inchs and weighs only 21 lbs. Its lightweight and compact design is easy to carry and reduces weight, which is only 1/3 of the weight of traditional lead-acid...
$139.99 USD
$232.99 USD
$139.99 USD
Subtotal: $139.99

Free Shipping

Free standard shipping on all orders

Free Returns

30 Days Hassle Free Returns

5 Years Warranty

Backed up by technical support within 24hrs.
12V 100Ah LiFePO4 Battery BCI Group 24, Built-in100A BMS Lithium Battery Deep Cycle for Trolling Motor, Marine,RV, Solar System

12V 100Ah LiFePO4 Battery BCI Group 24, Built-in100A BMS Lithium Battery Deep Cycle for Trolling Motor, Marine,RV, Solar System

$232.99 $139.99

12V 100Ah LiFePO4 Battery BCI Group 24, Built-in100A BMS Lithium Battery Deep Cycle for Trolling Motor, Marine,RV, Solar System

$232.99 $139.99

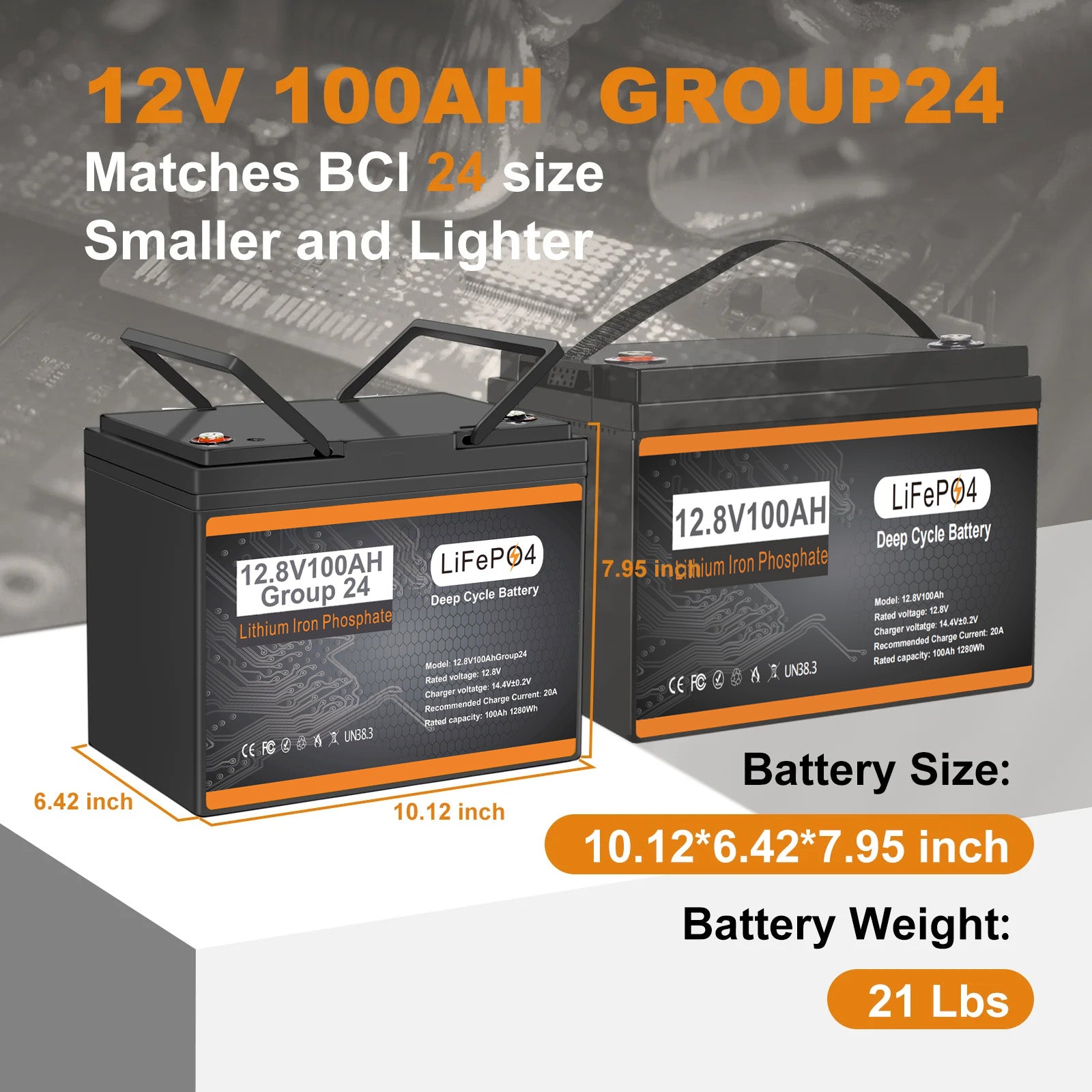

  • 【Group 24 Universal Size】The mini 12V 100Ah Group 24 lithium iron phosphate battery size 10.12 L * 6.42 W * 7.95 H inchs and weighs only 21 lbs. Its lightweight and compact design is easy to carry and reduces weight, which is only 1/3 of the weight of traditional lead-acid batteries, making it a perfect replacement for lead-acid batteries.
  • 【Grade A Cell, 100A BMS】The lithium battery is made of grade A LiFePO4 cells, which has the characteristics of high energy density, stable performance and fast charging power. It also has a built-in 100A smart BMS with multiple protections such as overcharge, over-discharge, overcurrent and short circuit.
  • 【10 Years Use Life】The 12.8V 100Ah LiFePO4 battery has up to 4,000 times (100% discharge depth) to 15,000 times (60% discharge depth), which is longer than traditional lead-acid batteries. If the battery is not used continuously, it should be charged every 1-3 months to extend the battery life.

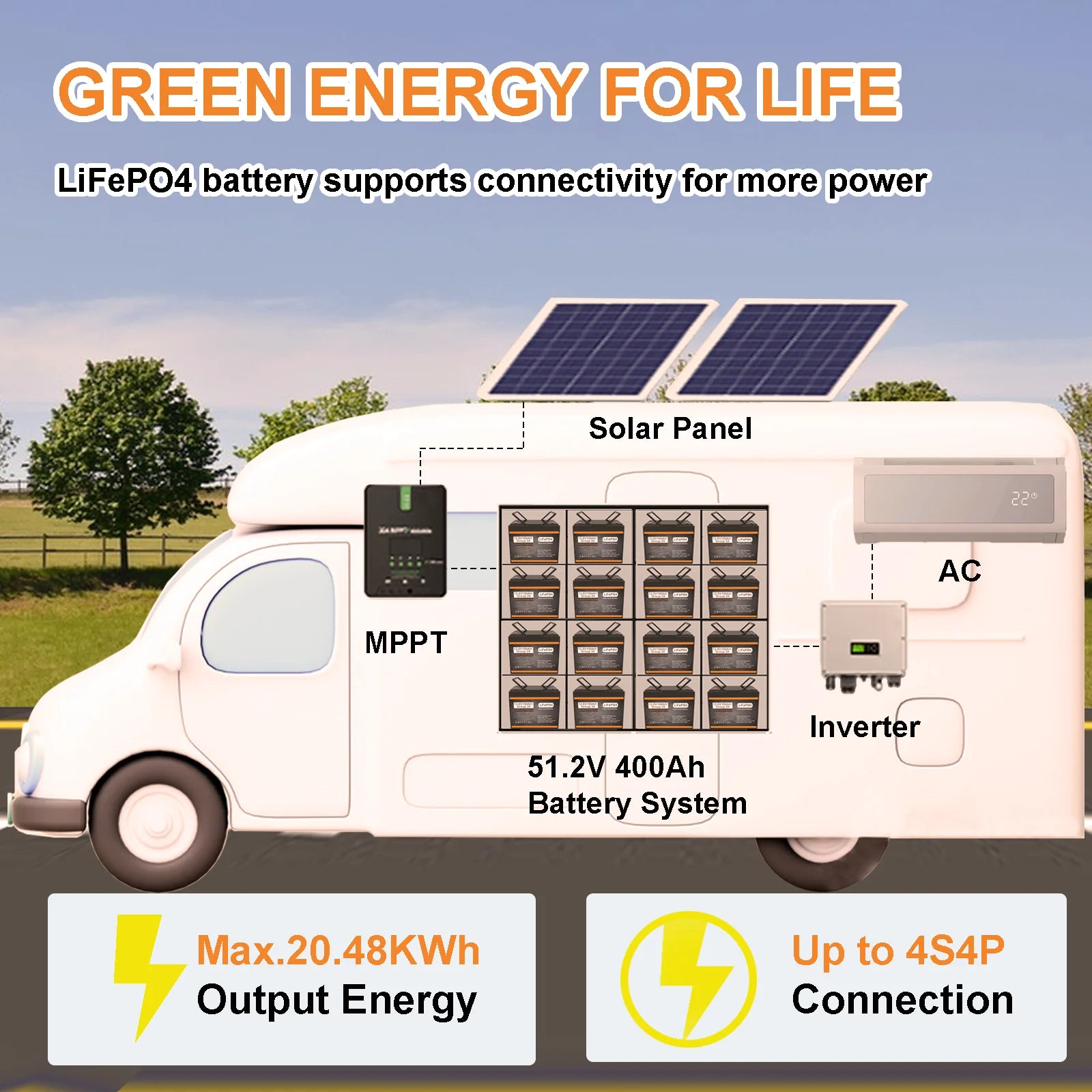

  • 【Max. 4P4S Capacity Expansion】12V100Ah battery supports series and parallel connection to expand capacity. Maximum support 4P/4S/4P4S, up to 16 batteries can be connected to form a 51.2V 400Ah battery pack with a maximum energy of 20.48kWh, capable of powering a variety of loads.
  • 【Safe and Widely Used】With its excellent energy density, longer cycle life and excellent performance, it is widely used in most fields, such as: RVs, golf carts, electric lawn mowers, solar off-grid, emergency energy storage, trolling motors, marine, etc.
BCI Size Group 24
Battery Weight 21 lbs
Battery Size L10.12*W6.42*H7.95 inches
Nominal Voltage 12.8V
Rated Capacity 100Ah
Battery energy 1280Wh
BMS Board 100A
Maximum Charging Current 50A
Maximum Continuous Discharge Current 100A
Peak Discharge Current 300A (about 2-3 seconds)
Charge/Discharge Temperature Range 0-45°C/-20-60°C
Recommended charging voltage 14.4V±0.2V
Cell Type LiFePO4 Prismatic A grade
Cycle Life 4000-15000 Cycles
Max expansion 4P/4S/4P4S
Terminal M8, 9/16L, 5/16D(inch)
Protection level IP65

FAQ

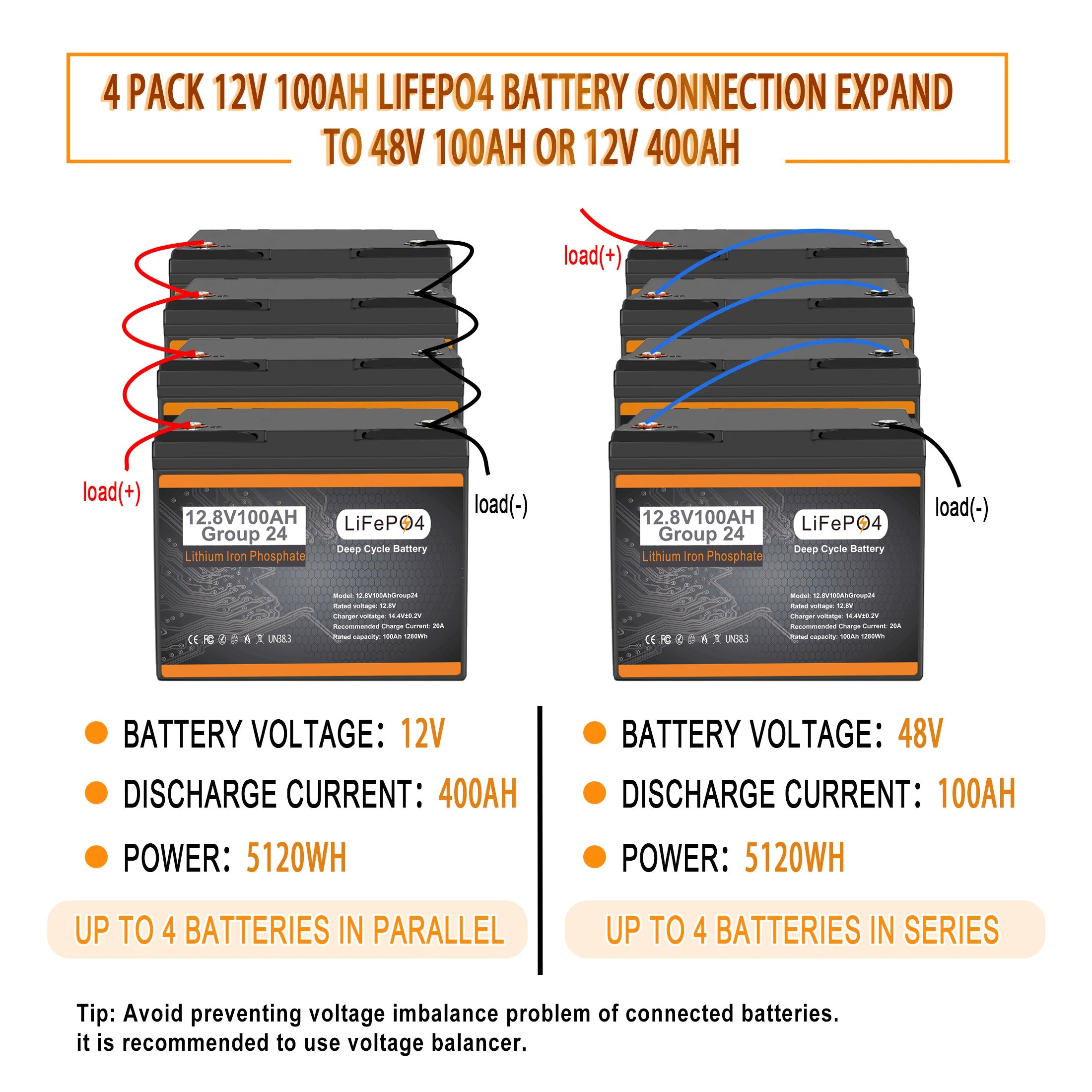

Q: Can four 12v 100 amp be wired in series for a 48 volt system?

A:

Our battery Support Capacity and Voltage Expansion-in parallel and in series.

For Example:(4 Pack) 12V 100Ah lifepo4 battery connection Tips

Voltage Balancing Before Connection:

1. To connect in series or in paral-lel, Necessary to reduce the volatge difference between batteries and let the battery system perform the best, batteries should meet below conditions:

Firstly, the same battery capacity (100Ah)

Secondly, from same brand (as lithium battery from different brands has their special BMS) and purchased in Latest time (recommend within one month)

Thirdly, fully charge the batteries separately (voltage at rest:>13.4V) before connect in series or /and in paral-lel

Fourthly, Connect the batteries one by one in parallel, and leave them togtether for 12-24hrs.

2. Limitation for In Series Connection: Up to 4 identical batteries for up to 48V (51.2V) 100Ah.

3. Limitation for In Parallel Connection: Up to 4 identical batteries for up to 12V 400Ah.

Q: Can I charge the battery with a 100A charger?

A:

12V 100Ah battery can be charged with 100A current at maximum. However, we will recommend to charge the battery at 20A (0.2C), which will maximize the battery's life span and cycles.
Q: Is this battery waterproof?

A:

Our battery is waterproof. But the battery cannot be immersed in water for a long time.
Q: How long is the battery warranty?
A: We provide five-year warranty for the poor performance of battery products when used correctly in accordance with the product manual instructions. The warranty is in effect from the date of purchase by the user. Please read the product manual carefully before installing and using the product, and use the battery correctly under the instructions of the manual. Procedures for Warranty Claims 1. We’ll assist to analyze consumer’s problem within 24 hours, and help solve problem, restore battery usage, and introduce the optimal use method. 2. If our product fails to work normally, the consumer assists us in completing all the battery testing, and both parties confirm that the product does have quality problems, we’ll send new battery replacement to the defective battery after it has been returned to our US warehouse by the pre-paid label we prepared. And the defective battery will be checked and tested by our technical team to analyze the problem.
Q: How do I choose a charger?
A: LiFePO4 batteries require a charger designed specifically for use with them and should not be used with a charger designed for conventional led-acid type batteries. It will help to extend the life of the battery to you don’t over charge it or charge too fast, etc.
