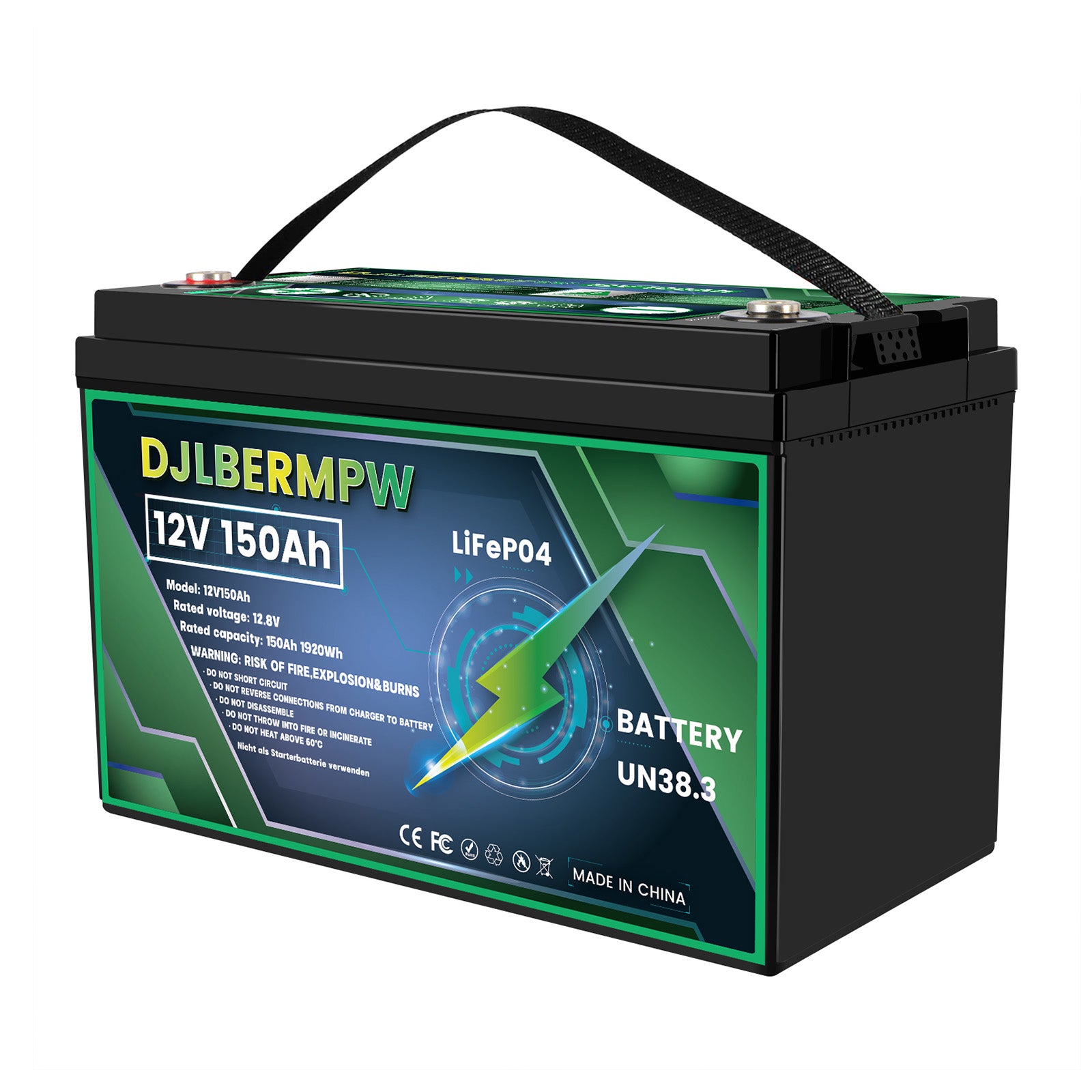

DJLBERMPW 12V 150Ah Lithium Battery 1920W Energy For Trolling Motor

  • Battery Size 12.91*6.77*8.44 inch.
  • 30.8 lbs, Small Size and Light Weight.
  • 150AH Capacity, 1920WH Energy.
  • Grade-A LiFePO4 Prismatic Cells.

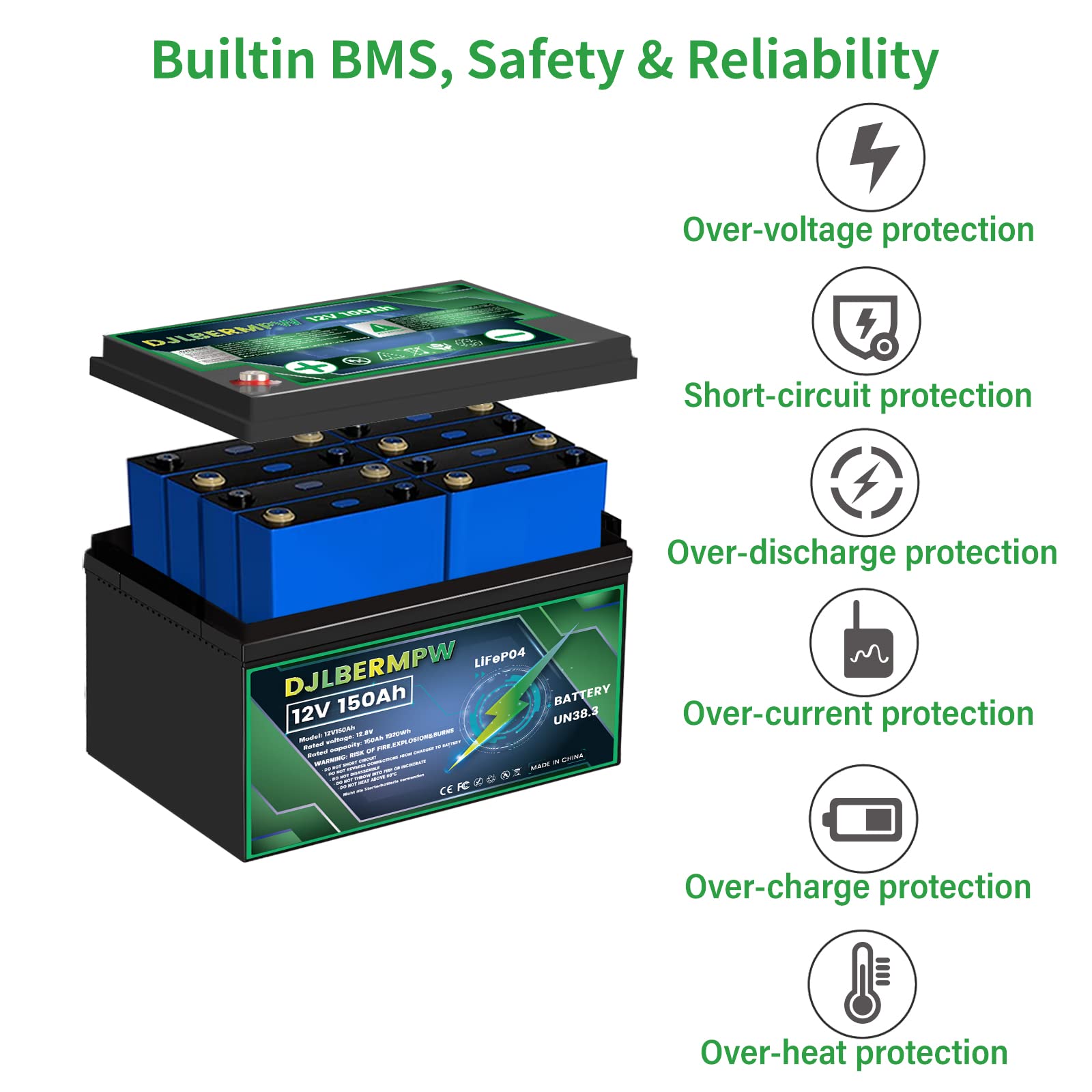

  • Built-in 120A Smart BMS Protection.
  • 4000-15000 Cycles, 10-Year Lifespan.
  • Expandable Up to 4P/4S /4P4S to Form 48V System.
  • Perfect For RV, Trolling Motor, Kayak Fishing, Solar System, etc.
  • 5 Years Warranty, 24 Hours Service.
$299.99 USD
$489.99 USD
$299.99 USD
Subtotal: $299.99

Free Shipping

Free standard shipping on all orders

Free Returns

30 Days Hassle Free Returns

5 Years Warranty

Backed up by technical support within 24hrs.
DJLBERMPW 12V 150Ah Lithium Battery 1920W Energy For Trolling Motor

DJLBERMPW 12V 150Ah Lithium Battery 1920W Energy For Trolling Motor

$489.99 $299.99

DJLBERMPW 12V 150Ah Lithium Battery 1920W Energy For Trolling Motor

$489.99 $299.99

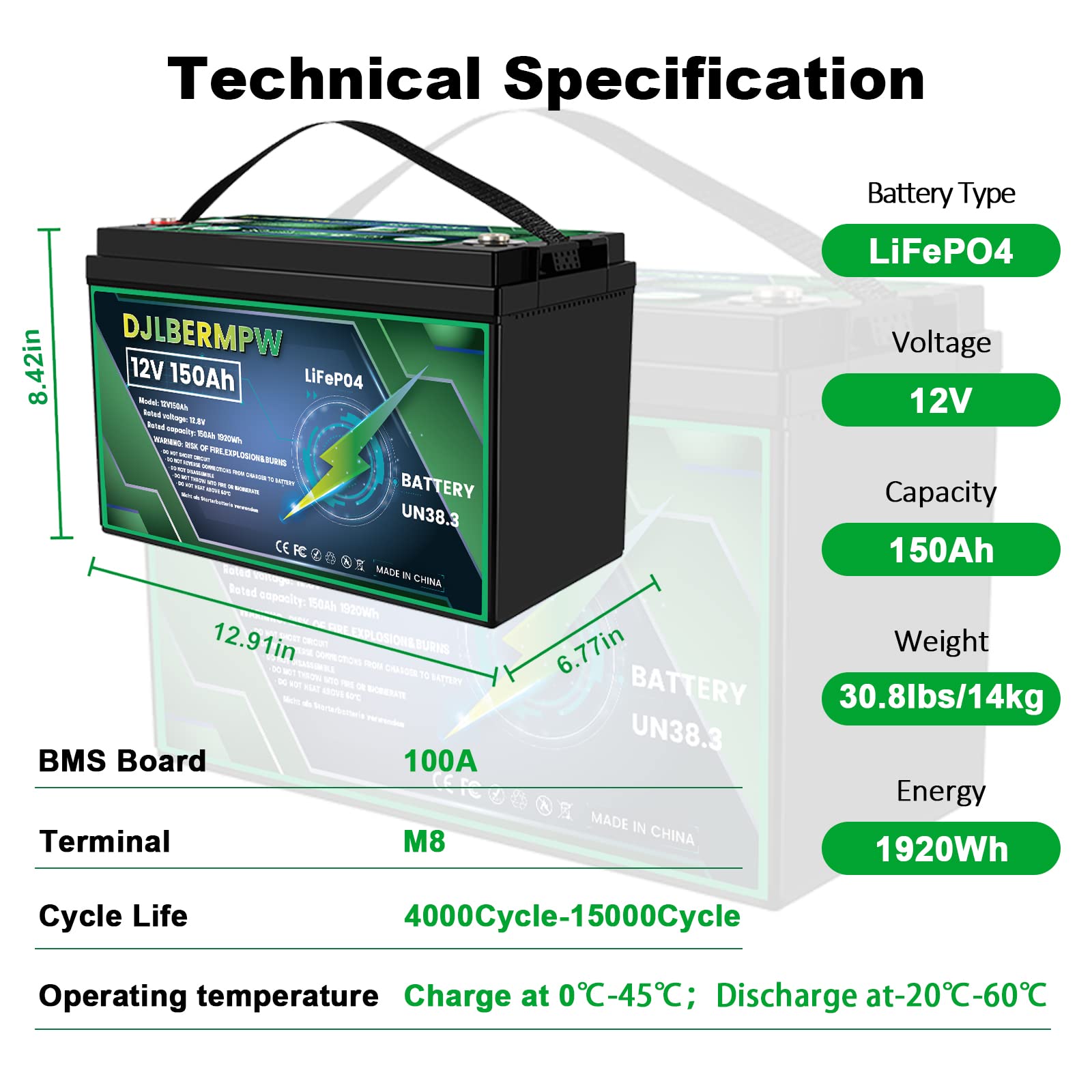

Warranty 5 years
Nominal Voltage 12.8V
Rated Capacity 150Ah
Battery Energy 1920Wh
BMS Boad 120A
Recommend Charge Current 30A
Max Charge Current 60A
Max Continuous Discharge Current 120A
Peak Discharge Current 380A(about 2-3 seconds)
Charge Temperature Range 0-45°C
Discharge Temperature Range -20-60°C
Recommend Charge Voltage 14.4V±0.2V
Max Charge Voltage 14.6V
Discharge Cut-Off Voltage 10.8V
Cell Type LiFePO4 Prismatic A grade
Cycle Life 4000-15000 Cycles
Max expansion 4P/4S/4P4S
Terminal M8, 9/16L, 5/16D(inch)
Shell material ABS+PC
Protection level IP65
Battery Size L12.91*W6.77*H8.44(inch)
Battery Weight 30.8 lbs

FAQ

Q: Can four 12v 100 amp be wired in series for a 48 volt system?

A:

Our battery Support Capacity and Voltage Expansion-in parallel and in series.

For Example:(4 Pack) 12V 100Ah lifepo4 battery connection Tips

Voltage Balancing Before Connection:

1. To connect in series or in paral-lel, Necessary to reduce the volatge difference between batteries and let the battery system perform the best, batteries should meet below conditions:

Firstly, the same battery capacity (100Ah)

Secondly, from same brand (as lithium battery from different brands has their special BMS) and purchased in Latest time (recommend within one month)

Thirdly, fully charge the batteries separately (voltage at rest:>13.4V) before connect in series or /and in paral-lel

Fourthly, Connect the batteries one by one in parallel, and leave them togtether for 12-24hrs.

2. Limitation for In Series Connection: Up to 4 identical batteries for up to 48V (51.2V) 100Ah.

3. Limitation for In Parallel Connection: Up to 4 identical batteries for up to 12V 400Ah.

Q: Can I charge the battery with a 100A charger?

A:

12V 100Ah battery can be charged with 100A current at maximum. However, we will recommend to charge the battery at 20A (0.2C), which will maximize the battery's life span and cycles.
Q: Is this battery waterproof?

A:

Our battery is waterproof. But the battery cannot be immersed in water for a long time.
Q: How long is the battery warranty?
A: We provide five-year warranty for the poor performance of battery products when used correctly in accordance with the product manual instructions. The warranty is in effect from the date of purchase by the user. Please read the product manual carefully before installing and using the product, and use the battery correctly under the instructions of the manual. Procedures for Warranty Claims 1. We’ll assist to analyze consumer’s problem within 24 hours, and help solve problem, restore battery usage, and introduce the optimal use method. 2. If our product fails to work normally, the consumer assists us in completing all the battery testing, and both parties confirm that the product does have quality problems, we’ll send new battery replacement to the defective battery after it has been returned to our US warehouse by the pre-paid label we prepared. And the defective battery will be checked and tested by our technical team to analyze the problem.
Q: How do I choose a charger?
A: LiFePO4 batteries require a charger designed specifically for use with them and should not be used with a charger designed for conventional led-acid type batteries. It will help to extend the life of the battery to you don’t over charge it or charge too fast, etc.
