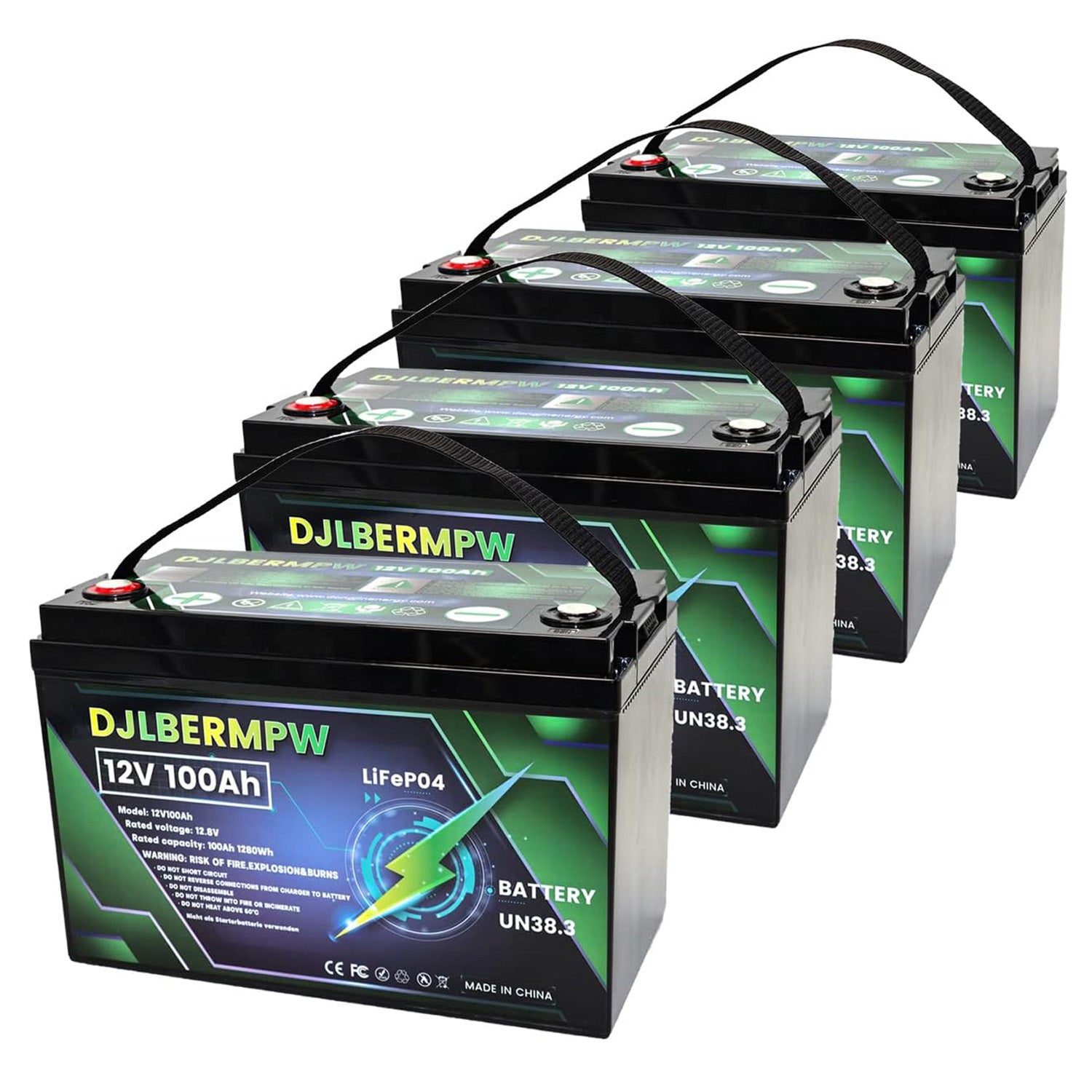

DJLBERMPW 4Pack 12V 100Ah LiFePO4 Lithium Battery, 100A BMS Deep Cycle Battery for Golf Cart, Marine.

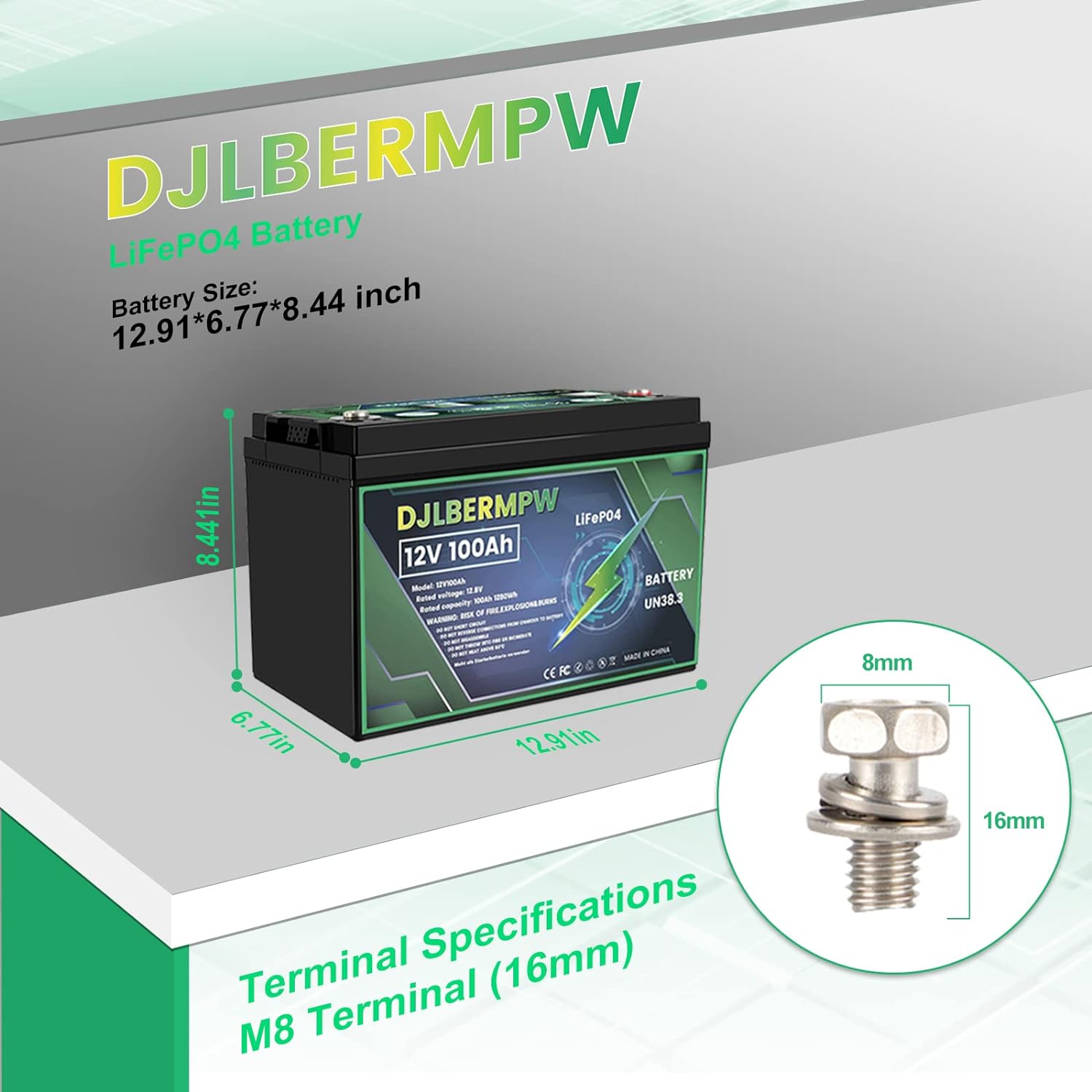

  • Battery Size 12.91*6.77*8.44 inch.
  • 22.2 lbs, Small Size and Light Weight.
  • 100AH Capacity, 1280WH Energy.
  • Grade-A LiFePO4 Prismatic Cells.

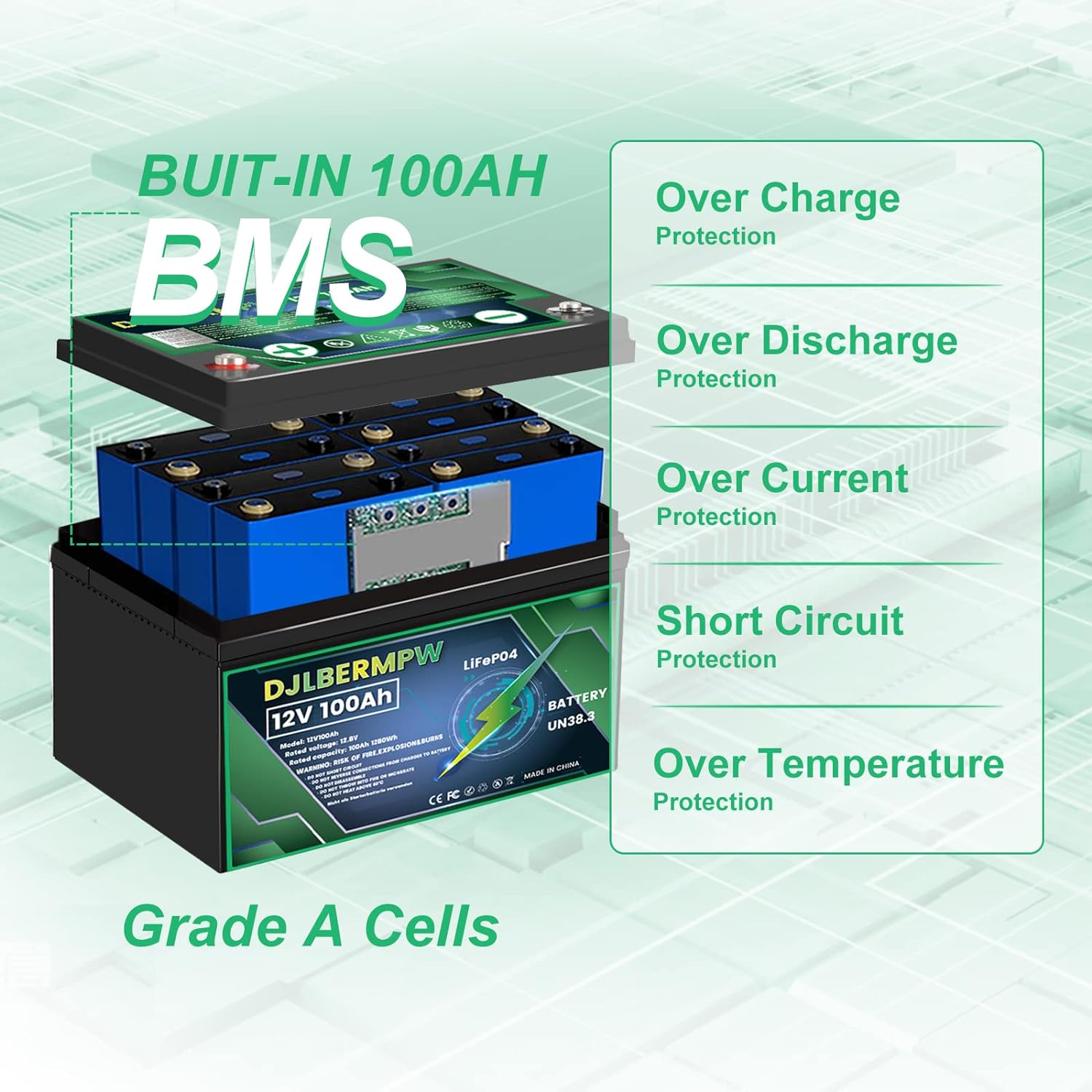

  • Built-in 100A Smart BMS Protection.
  • 4000-15000 Cycles, 10-Year Lifespan.
  • Expandable Up to 4P/4S /4P4S to Form 48V System.
  • Perfect For RV, Trolling Motor, Kayak Fishing, Solar System, etc.
  • 5 Years Warranty, 24 Hours Service.
$859.99 USD
$1,022.99 USD
$859.99 USD
Subtotal: $859.99

Free Shipping

Free standard shipping on all orders

Free Returns

30 Days Hassle Free Returns

5 Years Warranty

Backed up by technical support within 24hrs.
DJLBERMPW 4Pack 12V 100Ah LiFePO4 Lithium Battery, 100A BMS Deep Cycle Battery for Golf Cart, Marine.

DJLBERMPW 4Pack 12V 100Ah LiFePO4 Lithium Battery, 100A BMS Deep Cycle Battery for Golf Cart, Marine.

$1,022.99 $859.99

DJLBERMPW 4Pack 12V 100Ah LiFePO4 Lithium Battery, 100A BMS Deep Cycle Battery for Golf Cart, Marine.

$1,022.99 $859.99

Warranty 5 years
Nominal Voltage 12.8V
Rated Capacity 100Ah
Battery Energy 1280Wh
BMS Boad 100A
Recommend Charge Current 20A
Max Charge Current 50A
Max Continuous Discharge Current 100A
Peak Discharge Current 300A(about 2-3 seconds)
Charge Temperature Range 0-45°C
Discharge Temperature Range -20-60°C
Recommend Charge Voltage 14.4V±0.2V
Max Charge Voltage 14.6V
Discharge Cut-Off Voltage 10.8V
Cell Type LiFePO4 Prismatic A grade
Cycle Life 4000-15000 Cycles
Max expansion 4P/4S/4P4S
Terminal M8, 9/16L, 5/16D(inch)
Shell material ABS+PC
Protection level IP65
Battery Size L12.91*W6.77*H8.44 inch
Battery Weight 22.2lbs/11kg

FAQ

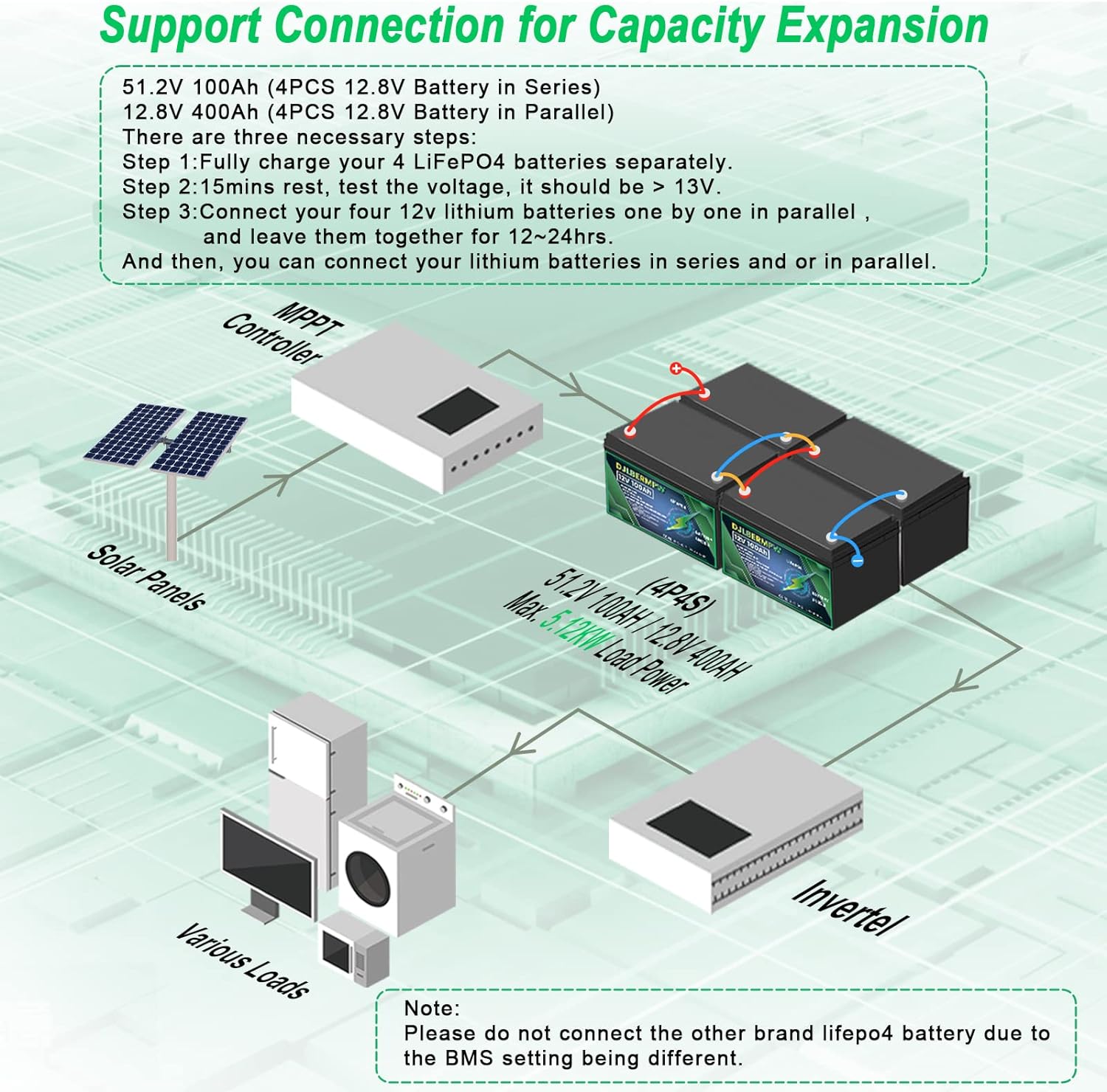

Q: Can four 12v 100 amp be wired in series for a 48 volt system?

A:

Our battery Support Capacity and Voltage Expansion-in parallel and in series.

For Example:(4 Pack) 12V 100Ah lifepo4 battery connection Tips

Voltage Balancing Before Connection:

1. To connect in series or in paral-lel, Necessary to reduce the volatge difference between batteries and let the battery system perform the best, batteries should meet below conditions:

Firstly, the same battery capacity (100Ah)

Secondly, from same brand (as lithium battery from different brands has their special BMS) and purchased in Latest time (recommend within one month)

Thirdly, fully charge the batteries separately (voltage at rest:>13.4V) before connect in series or /and in paral-lel

Fourthly, Connect the batteries one by one in parallel, and leave them togtether for 12-24hrs.

2. Limitation for In Series Connection: Up to 4 identical batteries for up to 48V (51.2V) 100Ah.

3. Limitation for In Parallel Connection: Up to 4 identical batteries for up to 12V 400Ah.

Q: Can I charge the battery with a 100A charger?

A:

12V 100Ah battery can be charged with 100A current at maximum. However, we will recommend to charge the battery at 20A (0.2C), which will maximize the battery's life span and cycles.
Q: Is this battery waterproof?

A:

Our battery is waterproof. But the battery cannot be immersed in water for a long time.
Q: How long is the battery warranty?
A: We provide five-year warranty for the poor performance of battery products when used correctly in accordance with the product manual instructions. The warranty is in effect from the date of purchase by the user. Please read the product manual carefully before installing and using the product, and use the battery correctly under the instructions of the manual. Procedures for Warranty Claims 1. We’ll assist to analyze consumer’s problem within 24 hours, and help solve problem, restore battery usage, and introduce the optimal use method. 2. If our product fails to work normally, the consumer assists us in completing all the battery testing, and both parties confirm that the product does have quality problems, we’ll send new battery replacement to the defective battery after it has been returned to our US warehouse by the pre-paid label we prepared. And the defective battery will be checked and tested by our technical team to analyze the problem.

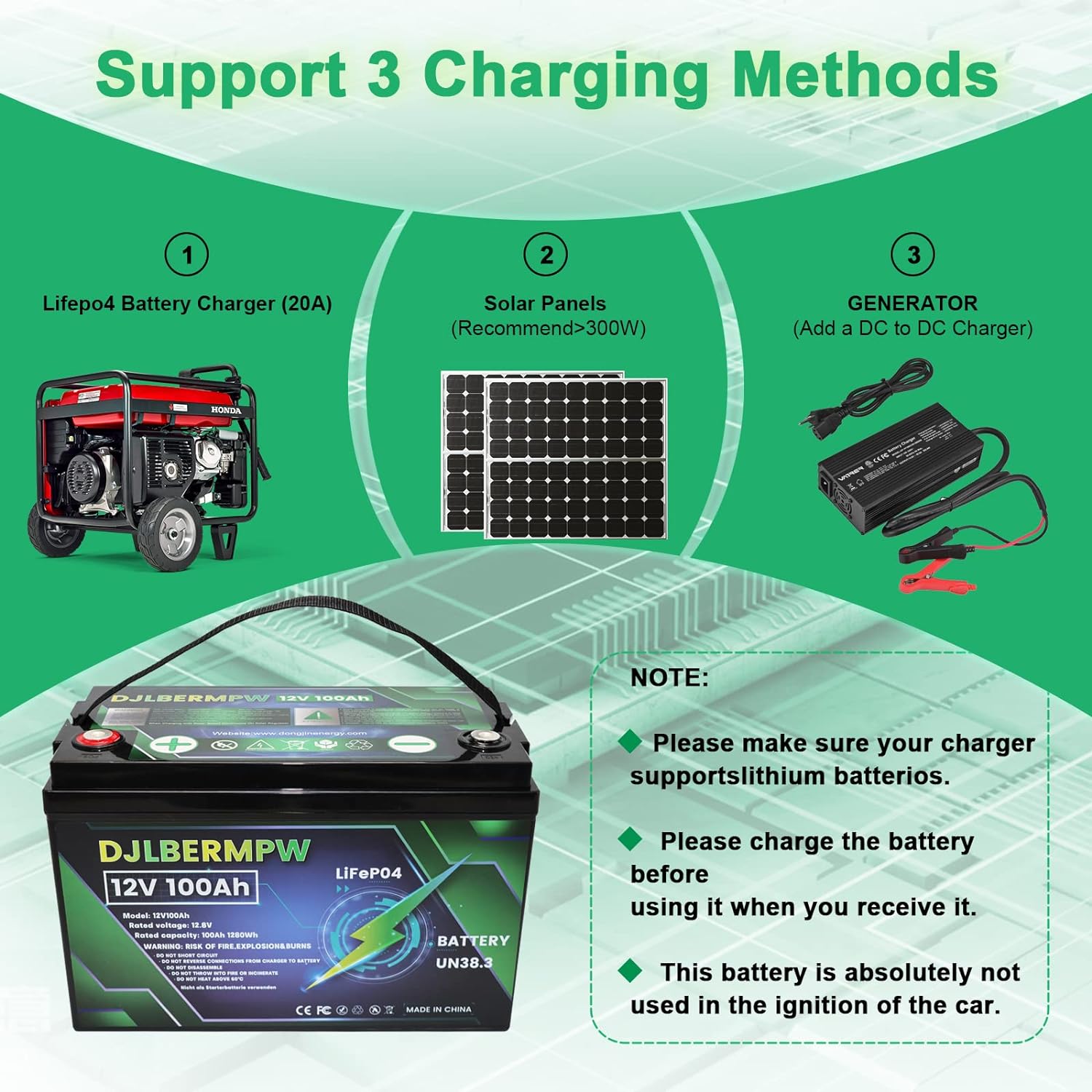

Q: How do I choose a charger?
A: LiFePO4 batteries require a charger designed specifically for use with them and should not be used with a charger designed for conventional led-acid type batteries. It will help to extend the life of the battery to you don’t over charge it or charge too fast, etc.
